Harmonic & Electric Filters — manufacturer & supplier
ACE Electromagnetics designs and manufactures a complete range of power-quality filters that mitigate harmonics, correct power factor, and protect motors fed from variable-frequency and rectifier-based drives. The range spans passive and active harmonic filters for line-side current-distortion control (helping plants meet IEEE-519 / IEC 61000 limits), and output-side sine-wave and dV/dt filters that protect motor insulation from PWM voltage stress. Each unit is built to order around the customer's load profile, voltage class and target THD, and is backed by ISO 9001:2015 manufacturing.
Passive Harmonic Filter
A passive harmonic filter is a line-side LCL network of reactors and tuned capacitors connected ahead of a non
Active Harmonic Filters
An active harmonic filter (AHF) is a shunt-connected IGBT PWM power converter that continuously measures load

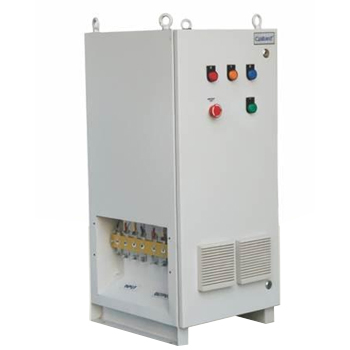

Passive Broad Band Harmonic Filter
A passive broad-band harmonic filter (BBF) is a wide-bandwidth LC filter that attenuates a continuous band of
Sine Wave Filters
A sine-wave (sine) filter is a low-pass LC filter fitted on the output of a PWM variable-frequency drive that
DV/DT Filters
A dV/dt filter is a compact L-R-C output filter fitted between a PWM drive and its motor to slow the rate of v

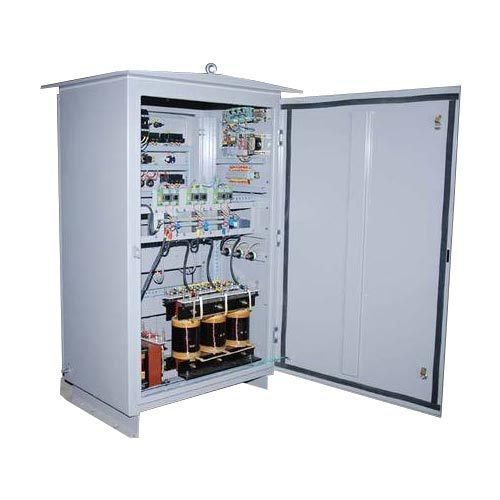

DC Rectifier with Harmonic Filter
This is a high-current AC-to-DC rectifier system with integrated harmonic mitigation, supplying regulated DC f
Need harmonic & electric filters built to spec?
Send your ratings and application — our engineers reply within one business day.
